Jenny Base Plate Mounted Gasoline Engine Air Compressor

You are here: Home > Stationary > Base Plate Mounted Compressors >
Base Plate Mounted Gasoline Engine Air Compressors


Download and Print Base Plate Mounted Gasoline Engine Air Compressors Literature

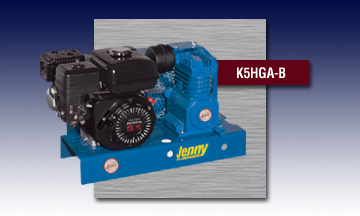

Jenny Base Plate Mounted Gasoline Engine Air Compressor - Model K5HGA-B


Standard Features
  • Heavy-duty single or two stage cast iron compressor pump Made in Somerset, PA USA
  • Splash lubricated
  • Belt driven with a large flywheel for extra cooling and easier start-up
  • Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
  • Directional air shroud for reduced pump temperatures
  • Totally enclosed heavy-duty belt guard
  • Powder coated, extra heavy steel base plate
  • Large canister intake filter with replaceable filter elements
  • Pressure relief safety valve
  • Pressure gauge

Single Stage
Model
Pump
HP
Drive
Pump RPM
125 PSI
CFM Disp

Del'd Air
K5HGA-B
K
5.5
Recoil Start
1285
14.2
8.6
GC8HGA-B
GC
8
890
24.6
16.0
GC11HGA-B
11
Electric Start
1070
28.6
18.3
J11HGA-B
J
865
31.8
20.9

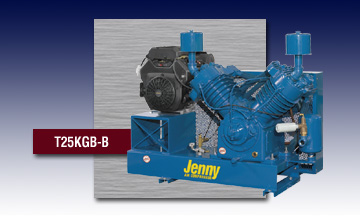

Jenny Base Plate Mounted Gasoline Engine Air Compressor - Model T25KGB-B



Two Stage
Model
Pump
HP
Drive
Pump RPM
175 PSI
CFM Disp

Del'd Air
GT5HGB-B
GT
5.5
Recoil Start
570
14.2
9.1
GT8HGB-B
8
820
24.6
15.4
GT11HGB-B
11
Electric Start
985
28.6
16.3
W11HGB-B
W
760
24.1
17.6
U18HGB-B
U
18
800
49.8
34.7
T25KGB-B
T
25
625
86.4
67.3

Jenny Base Plate Mounted Gasoline Engine Air Compressor - Model GT11HGB-B

Gas

  • Constant run control set at 105-125 PSI (single stage) or 145-175 PSI (two stage)
  • High quality pilot valve
  • Pneumatic throttle idle control
  • Honda GX Series OHV Engine or Kohler OHV V-Twin Engine
