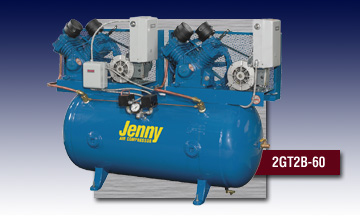

Jenny Duplex Electric Stationary Air Compressor - Model 2GT2B-60

Standard Features

Heavy-duty single or two stage cast iron compressor pump - Made in Somerset, PA USA
Splash lubricated
Belt driven with a large flywheel for extra cooling and easier start-up
Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
Directional air shroud for reduced pump temperatures
Totally enclosed heavy-duty belt guard
Tanks are powder coated and ASME certified
60 gallon tanks and larger are ASME National Board certified
Protectively mounted fittings
Manual tank drain(s)

Large canister intake filter with replaceable filter elements
Special unloading valves to assist in motor starting
Tank gauge
Pressure relief safety valve
Auto Start/Stop control with pressure unloader set at 105-125 PSI (single stage) or 145-175 PSI (two stage)
Magnetic starter is included on all 5HP and larger units
Industrial/Commercial grade UL Listed electric motor
Thermal overload motor protection
Alternator and magnetic starter are standard on all duplex models

Single Stage Duplex

Model

Pump

Tank Gallon

Pump RPM

125 PSI
CFM Disp

Del'd Air

Single Stage

2(K15A)-60

870

19.6

12.4

2(GC5A)-80

1020

55.6

35.6

Two Stage

175 PSI

2(GT5B)-120

120

900

36.6

30.4

2(W5B)-120

762

42.4

35.0

2(U10B)-120

710

87.2

70.4

2(U10B)-240

240

2(T25B)-240

780

214.0

166.0

Options
